Standards Compliant
GB 8808,GB/T 1040.1-2006,GB/T 1040.2-2006,GB/T 1040.3-2006,GB/T 1040. 4-2006,GB/T 1040.5-2008,GB/T 12914-2008,GB/T 17200,GB/T 16578.1-2008,GB/T 7122,GB/T 2790, GB/T 2791,GB/T 2792,GB/T 17590,ISO 37,ASTM E4,ASTM D882,ASTM D1938,ASTM D3330,ASTM F88,ASTM F904,JIS P8113,QB/T 2358,QB/T 1130
Application Field
Packaging/Food/Medicine/New material/Chemical/Printing

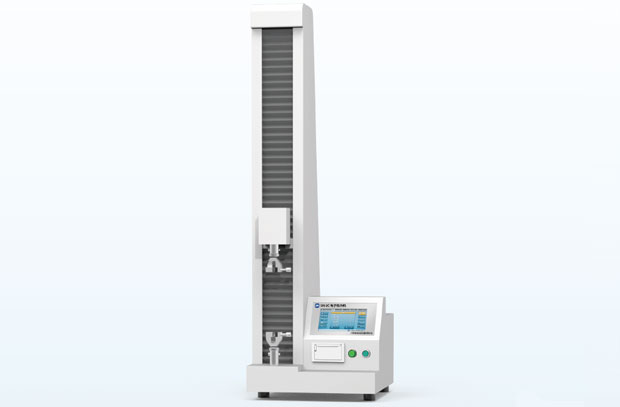

It is suitable for testing the mechanical properties such as tension, peeling, heat sealing, tearing of various packaging materials including plastic films, paper-aluminum-plastic composite films, adhesive tapes, flexible packaging materials, rubber sheets, papers, non-woven fabrics, etc. It has the advantages of high precision, convenient operation, intuitiveness, reliability, and wide application. It complies with the requirements of the national technical supervision department for testing technologies. It is widely used for quality control by plastic film, food, and pharmaceutical production enterprises, and for scientific research and teaching experiments in testing institutions and schools.
The sample is clamped between the two chucks of the fixture. The two chucks move relatively. Through the force value sensor located on the moving chuck and the displacement sensor built into the machine, the changes in force value and displacement during the test process are collected, so as to calculate the performance indicators such as tensile strength, tear strength, and deformation rate of the sample.
1.It has comprehensive testing functions and can conduct multiple tests such as tension, peeling, heat sealing, tearing, and puncturing. Multiple parameters such as sample thickness and fixture distance can be freely set.
2.It is equipped with multi-level protection devices, ensuring safe and reliable test operation. The lead screw design makes it more durable.
3.All core components are imported, making it more accurate and durable.
4.The touch screen operation is convenient, and the data is intuitive.
5.The calibration parameters are protected by a password to prevent accidental modification.
6.It has stepless speed regulation, and the test speed can be changed.
|
Item
|
Parameter
|
|
Measuring range
|
0 - 300N
|
|
Sensor accuracy
|
Level 1
|
|
Force value resolution
|
0.01N
|
|
Displacement resolution
|
0.01mm
|
|
Test speed
|
0 - 300 mm/min, stepless speed regulation
|
|
Effective stroke
|
800mm
|
|
Control interface
|
Touch - screen display
|
|
Print output
|
Modular integrated thermal printer
|
|
Working environment
|
Temperature 23±2°C, humidity 55±20%RH
|
|
dimensions
|
440mm×440mm×1300mm
|
|
Instrument Configuration
|
One main unit, one set of tensile fixtures, one set of puncturing fixtures, a power cord.
|
Deliver,Shipping And Serving
Provide product technical parameters, application scenarios, and other information to help you to choose the right equipment. Solution Design, sample testing, on-site visits is also supported.
Clarify details such as price, delivery time, payment methods, sign the contracts, and provide operation/ maintenance training to ensure customers use the instruments correctly.Assist customers with acceptance procedures and debugging each goods before shipment to ensure the instruments meet contract requirements.
In addition to the 1-year warranty, we also provide lifelong remote technical support to solve usage problems, provide regular maintenance services, and solve specific problems for customers in a timely manner.
