Standards Compliant
GB 8808,GB/T 1040.1-2006,GB/T 1040.2-2006,GB/T 1040.3-2006,GB/T 1040. 4-2006,GB/T 1040.5-2008,GB/T 12914-2008,GB/T 17200,GB/T 16578.1-2008,GB/T 7122,GB/T 2790, GB/T 2791,GB/T 2792,GB/T 17590,ISO 37,ASTM E4,ASTM D882,ASTM D1938,ASTM D3330,ASTM F88,ASTM F904,JIS P8113,QB/T 2358,QB/T 1130
Application Field
Packaging/Food/Medicine/New material/Chemical/Printing
It is suitable for testing the mechanical properties such as tension, peeling, heat sealing, tearing, puncturing, stiffness, compression, bending, and shearing of various packaging materials including plastic films, paper-aluminum-plastic composite films, adhesive tapes, flexible packaging materials, rubber sheets, papers, non-woven fabrics, etc. It has the advantages of high precision, convenient operation, intuitiveness, reliability, and wide application. It complies with the requirements of the national technical supervision department for testing technologies. It is widely used for quality control by plastic film, food, and pharmaceutical production enterprises, and for scientific research and teaching experiments in testing institutions and schools.

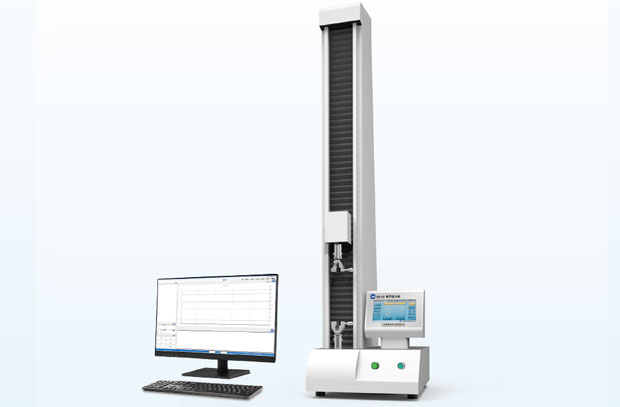

The sample is clamped between the two chucks of the fixture. The two chucks move relatively. Through the force value sensor located on the moving chuck and the displacement sensor built into the machine, the changes in force value and displacement during the test process are collected, so as to calculate the performance indicators such as tensile strength, tear strength, and deformation rate of the sample.
1.Simple operation and accurate experimental data.
2.Complete experimental functions, capable of conducting experiments such as tension, bending, puncturing, sealing, peeling, heat sealing, tearing, shearing, and elastic modulus testing.
3.The testing range of 0-500N is the most valuable.
4.The experimental results are automatically saved and can be connected to a printer to print the test report.
5.The core components are imported, ensuring high precision.
6.The test speed, fixture distance, etc. can be adjusted to meet different requirements.
7.The main unit is equipped with an 7inch touch screen for intelligent interaction. The newly-developed intelligent operating system it carries has a simple and intuitive interactive interface similar to that of a smartphone, with a clear and understandable operation logic.
8.Pneumatic fixtures are configured to improve the testing efficiency (optional).
|
Item
|
Parameter
|
|
Measuring range
|
0 - 500 N (customization available)
|
|
Elongation rate
|
1250%
|
|
Test speed
|
0 - 500mm/min (stepless speed regulation)
|
|
Displacement accuracy
|
Within ±0.5% of the indicated value
|
|
Sensor accuracy
|
Level 0.5
|
|
Force value resolution
|
0.001N
|
|
Effective stroke
|
800mm
|
|
Power supply
|
AC 220V/50Hz
|
|
Power
|
1000W
|
|
Dimensions
|
440mm×500mm×1400mm
|
Instrument Configuration
One main unit, one set of tensile fixtures, one set of puncturing fixtures, one set of professional software, a power cord,a sampling plate.
Deliver,Shipping And Serving
Provide product technical parameters, application scenarios, and other information to help you to choose the right equipment. Solution Design, sample testing, on-site visits is also supported.
Clarify details such as price, delivery time, payment methods, sign the contracts, and provide operation/ maintenance training to ensure customers use the instruments correctly.Assist customers with acceptance procedures and debugging each goods before shipment to ensure the instruments meet contract requirements.
In addition to the 1-year warranty, we also provide lifelong remote technical support to solve usage problems, provide regular maintenance services, and solve specific problems for customers in a timely manner.
